- 90 watts x 2 into 8 Ω (all channels driven)
- 150 watts x 2 into 4 Ω or 2 Ω (all channels driven)
- 200 watts x 1 bridged into 8 Ω or 4 Ω
- 20 amps peak current per channel
- 2 Ohm stable operation with load selector switch
- Two pairs of speaker outputs with front panel A/B buttons
- Rear-mounted lockout switch disables front A/B buttons
- High pass filter, switchable for 20Hz or 40Hz
- Automatic on/off by DC trigger with looping output
- Automatic on/off by audio signal with 2 sensitivity settings
- Fully discrete circuitry with high current toroid transformer
- Bridging switch for stereo or mono operation
- Efficient, low heat design
- DC Servo and relay protection circuits
- Rear-mounted left and right gain controls
- Standby, channel status and high temperature indicators
- Gold-plated RCA input jacks
- Heavy duty 24k gold-plated 5-way speaker terminals
- 115/230v selector on rear panel
- 1U rack mount kit available separately (Model RMK11)

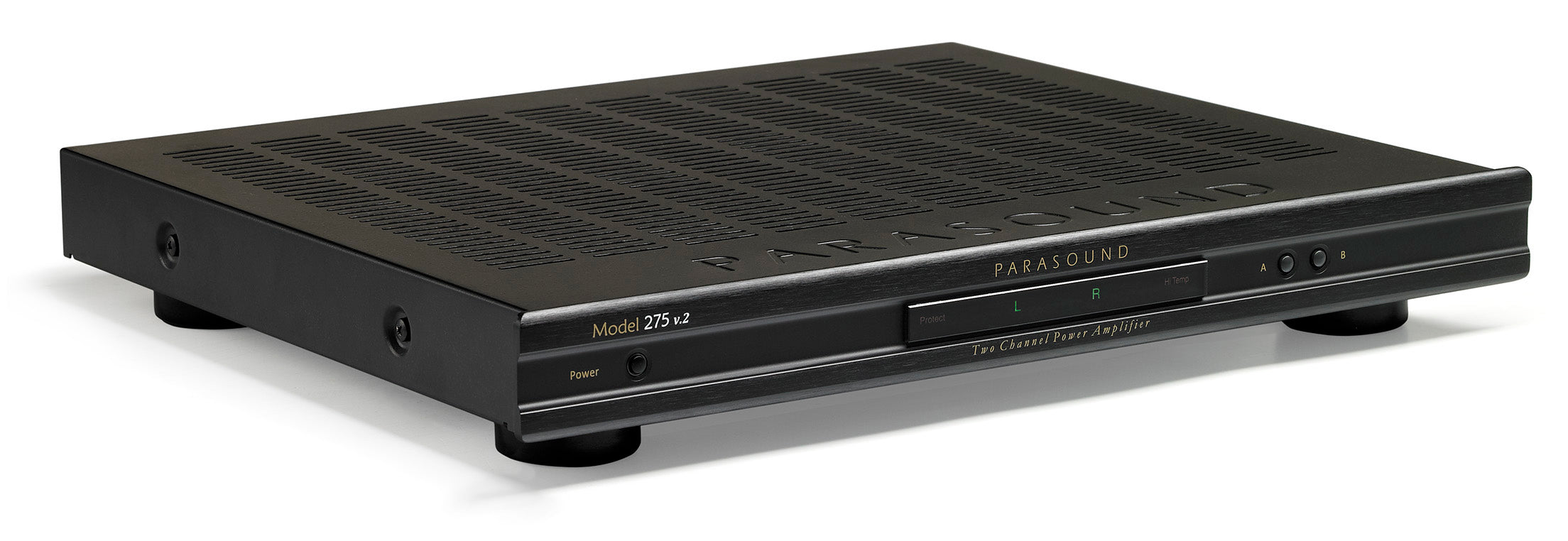

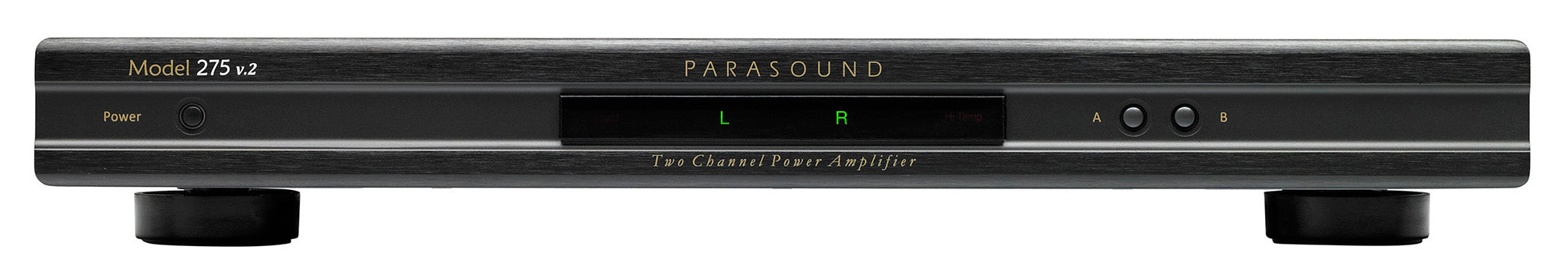

NC 275v2 Power Amp
Adding product to your cart
Features
Specifications
Power Output - (RMS power, 20 Hz - 20 kHz)
All Channels Driven
90 watts x 2, 8Ω
150 watts x 2, 4Ω
150 watts x 2, 2Ω (Load switch set to 2-3Ω)
Bridged Mono
200 watts x 1, 8Ω
200 watts x 1, 4Ω (Load switch set to 2-3Ω)
Current Capacity
20 amps peak per channel
Frequency Response
20 Hz - 50 kHz, +0/-3 dB, 1 watt
Dynamic Headroom - 1.3 dB
Total Harmonic Distortion
0.35% at full rated output
0.025% at average listening levels
IM Distortion - 0.05 %
Transient IM Distortion - Not measurable
S/N Ratio
110 dB at rated output, IHF A-weighted
103 dB at rated output, unweighted
93 dB at 2.828 V output, IHF A-weighted
84 dB at 2.828 V output, unweighted
Input Impedance - 33 k Ω
Input Sensitivity
800 mV for full rated output (28dB)
Inter-Channel Crosstalk
80 dB @1 kHz, 72 dB @10 kHz, 65 dB @ 20kHz
Damping Factor - Over 150 at 20Hz
12V Trigger Turn On - DC 9 - 12V, 15 mA
Audio Turn On
Quieter: 1 mV
Louder: 6 mV
AC Power Requirement
110 - 120 V / 220 -240 V, 50 - 60 Hz
0.5 watts standby
25 watts Idle (no audio)
350 watts full output
Dimensions
17-1/4" Wide
16" Deep, with cables connected
2-1/2" High with feet, 1-3/4" panel only (1U)
(437 x 406 x 63mm, 44.1 mm panel only)
Net Weight - 20 lbs (9.1 kg)
Rack Mount Accessory
May be Purchased Separately
RMK11
Support and Downloads
Reviews
Dagogo May 2022
"I find Parasound products to sound great, are a tremendous value, and are built to last based on my own almost 30 years of personal experience with the brand."
"This power amplifier is so well designed that it worked well with any speaker that I threw at it."
"But for $899, the 275 v.2 gets you a lot of power and very good sound. And if my experience with Parasound is any indication, it also gets you an amp that will be reliable and last a long, long time."
Home Theater Forum, November 2021
"Most satisfying, though, is the extreme sound quality this Bay Area team manages to extract from some of the most modest of physical profiles. The New Classic 275 v.2 is no exception to the rule. Stack two of these skinny slabs in your rack for Atmos flyovers, or plonk it on your desk with a streamer for a highly rewarding bask in your jazz collection. I don't think you will be disappointed."
